Panasonic Electronic Components
CAP ALUM 220UF 20% 35V SMD

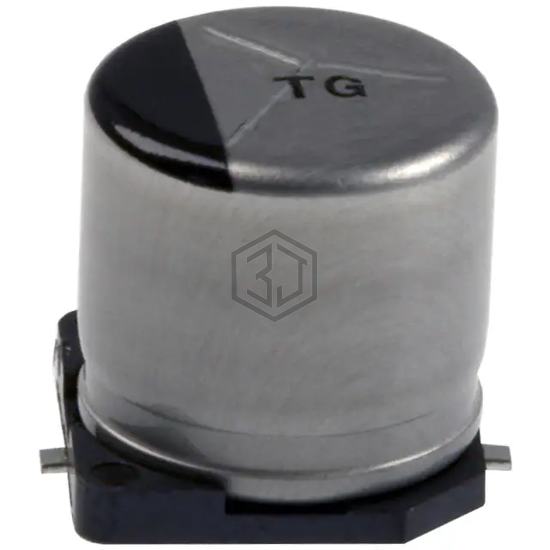

EEV-TG1V221UP is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 220UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 8,497
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 300mOhm @ 100kHz |
| Lifetime @ Temp. | 2000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 175.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 270 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.402" (10.20mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
EEV-TG1V221UP is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EMHL250ARA221MHA0G | United Chemi-Con | CAP ALUM 220UF 20% 25V SMD | 77% | View |
| EMVH500GRA221MKE0S | United Chemi-Con | CAP ALUM 220UF 20% 50V SMD | 77% | View |
| 35THV220M10X10.5 | Rubycon | CAP ALUM 220UF 20% 35V SMD | 72% | View |
| EMHJ350ADA221MJA0G | United Chemi-Con | CAP ALUM 220UF 20% 35V SMD | 72% | View |
| MAL214099011E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 35V SMD | 67% | View |
| EEE-TC1A221V | Panasonic Electronic Components | CAP ALUM 220UF 20% 10V SMD | 59% | View |
Submit your RFQ for EEV-TG1V221UP and get a quote within 24 hours.
