Panasonic Electronic Components
CAP ALUM 470UF 20% 80V SMD

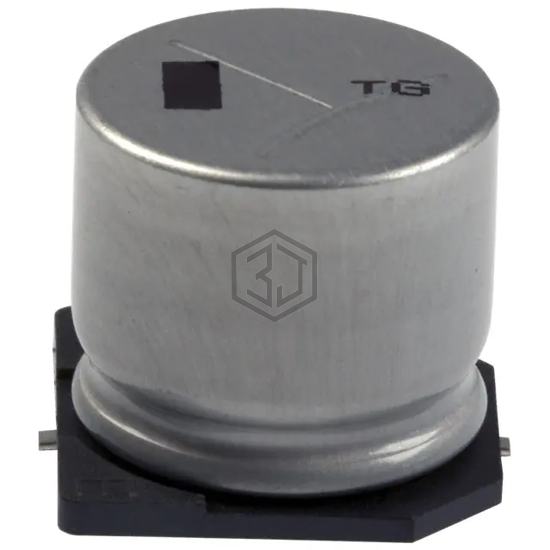

EEV-TG1K471M is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 470UF 20% 80V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - rated 80 V, package / case Radial, Can - SMD.
In Stock: 1,857
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | 280mOhm @ 100kHz |
| Lifetime @ Temp. | 2000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 260 mA @ 120 Hz |
| Ripple Current @ High Frequency | 400 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Surface Mount Land Size | 0.748" L x 0.748" W (19.00mm x 19.00mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEE-TK1K471AM | Panasonic Electronic Components | CAP ALUM 470UF 20% 80V SMD | 97% | View |
| EEE-TG1J471M | Panasonic Electronic Components | CAP ALUM 470UF 20% 63V SMD | 83% | View |
| EMHL100ARA471MHA0G | United Chemi-Con | CAP ALUM 470UF 20% 10V SMD | 70% | View |
| EEE-TP1C471AP | Panasonic Electronic Components | CAP ALUM 470UF 20% 16V SMD | 68% | View |
| MAL224699712E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 80V SMD | 53% | View |
| VUJ471M1VTR-1616S | SURGE | CAP ALUM 470UF 20% 35V SMD | 51% | View |
Submit your RFQ for EEV-TG1K471M and get a quote within 24 hours.
