Panasonic Electronic Components
CAP ALUM 33UF 20% 80V SMD

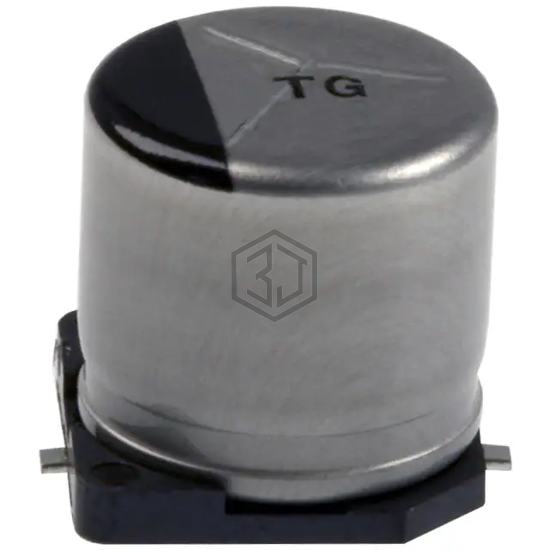

EEV-TG1K330P is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 33UF 20% 80V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - rated 80 V, package / case Radial, Can - SMD.
In Stock: 5
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | 1Ohm @ 100kHz |
| Lifetime @ Temp. | 2000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 58.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 90 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.402" (10.20mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
Submit your RFQ for EEV-TG1K330P and get a quote within 24 hours.
