Panasonic Electronic Components
CAP ALUM 330UF 20% 63V SMD

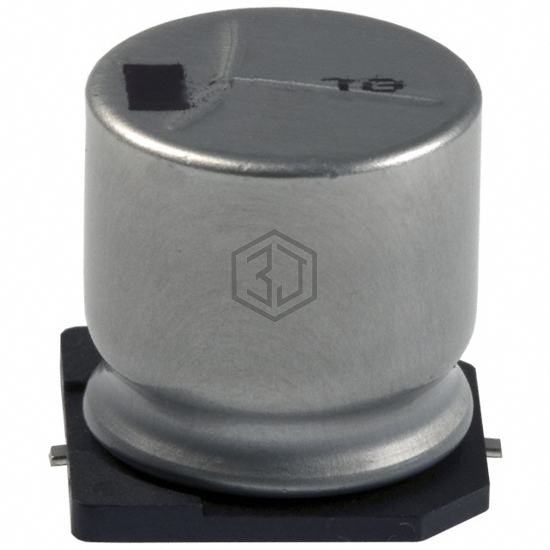

EEV-TG1J331M is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 330UF 20% 63V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - rated 63 V, package / case Radial, Can - SMD.
In Stock: 1,167
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | 180mOhm @ 100kHz |
| Lifetime @ Temp. | 2000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 325 mA @ 120 Hz |
| Ripple Current @ High Frequency | 500 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Surface Mount Land Size | 0.669" L x 0.669" W (17.00mm x 17.00mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UUH1H331MNQ6ZD | Nichicon | CAP ALUM 330UF 20% 50V SMD | 89% | View |
| UUH1H331MNQ6MS | Nichicon | CAP ALUM 330UF 20% 50V SMD | 89% | View |
| EEE-TG1K331M | Panasonic Electronic Components | CAP ALUM 330UF 20% 80V SMD | 83% | View |
| EMHL350ARA331MJA0G | United Chemi-Con | CAP ALUM 330UF 20% 35V SMD | 74% | View |
| EMVH350ARA331MKE0S | United Chemi-Con | CAP ALUM 330UF 20% 35V SMD | 69% | View |
| MAL224699711E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 80V SMD | 67% | View |
