Panasonic Electronic Components

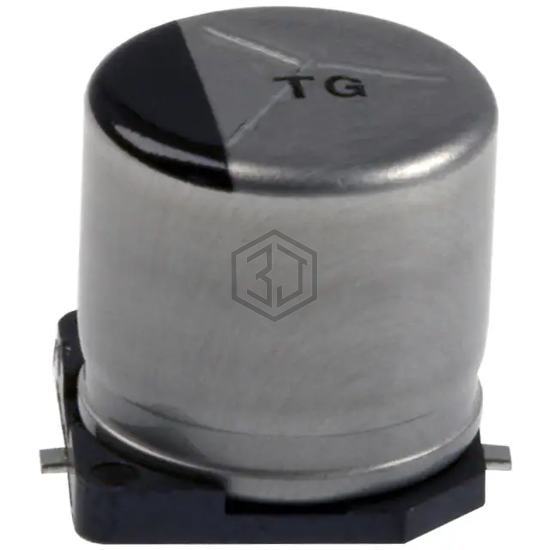

CAP ALUM 100UF 20% 50V SMD
EEV-TG1H101UP is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 100UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 4,081
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | 500mOhm @ 100kHz |
| Lifetime @ Temp. | 2000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 143.7 mA @ 120 Hz |
| Ripple Current @ High Frequency | 221 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.402" (10.20mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
EEV-TG1H101UP is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UUH1H101MNQ1ZD | Nichicon | CAP ALUM 100UF 20% 50V SMD | 93% | View |
| EEV-TG1V101UP | Panasonic Electronic Components | CAP ALUM 100UF 20% 35V SMD | 84% | View |
| 107UVK035MFE | Cornell Dubilier / Illinois Capacitor | CAP ALUM 100UF 20% 35V SMD | 84% | View |
| EEV-TG1V101P | Panasonic Electronic Components | CAP ALUM 100UF 20% 35V SMD | 80% | View |
| EEE-TG1J101Q | Panasonic Electronic Components | CAP ALUM 100UF 20% 63V SMD | 76% | View |
| EEV-TG1J101UP | Panasonic Electronic Components | CAP ALUM 100UF 20% 63V SMD | 74% | View |
Submit your RFQ for EEV-TG1H101UP and get a quote within 24 hours.
