Panasonic Electronic Components

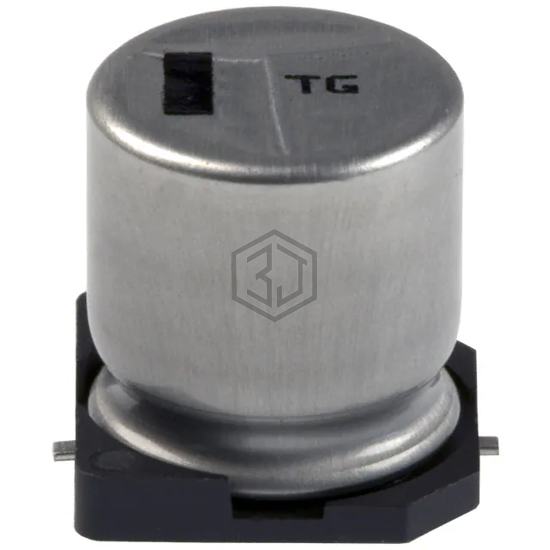

CAP ALUM 470UF 20% 16V SMD
EEV-TG1C471Q is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 470UF 20% 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 1,936
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 120mOhm @ 100kHz |
| Lifetime @ Temp. | 2000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 520 mA @ 120 Hz |
| Ripple Current @ High Frequency | 800 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.531" (13.50mm) |
| Surface Mount Land Size | 0.531" L x 0.531" W (13.50mm x 13.50mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
Submit your RFQ for EEV-TG1C471Q and get a quote within 24 hours.
