Panasonic Electronic Components

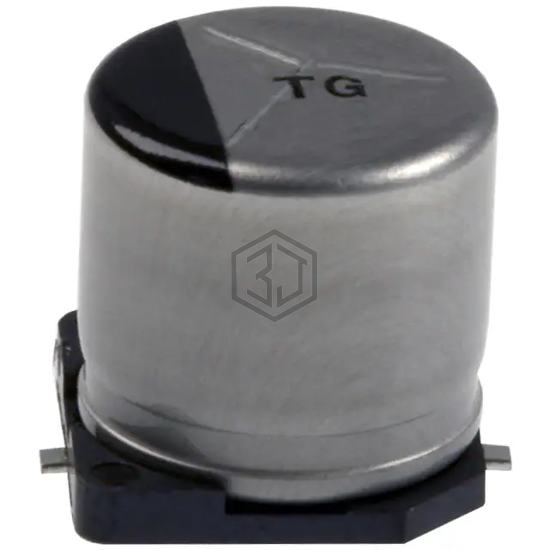

CAP ALUM 470UF 20% 10V SMD
EEV-TG1A471UP is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 470UF 20% 10V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - rated 10 V, package / case Radial, Can - SMD.
In Stock: 5,896
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | 300mOhm @ 100kHz |
| Lifetime @ Temp. | 2000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 175.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 270 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.402" (10.20mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
EEV-TG1A471UP is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EDT477M010S9PAA | KEMET | CAP ALUM 470UF 20% 10V SMD | 98% | View |
| AEH1010471M010R | KYOCERA AVX | ALUMINUM CAP | 94% | View |
| EMHB100ADA471MJA0G | United Chemi-Con | CAP ALUM 470UF 20% 10V SMD | 82% | View |
| AEH1012471M016R | KYOCERA AVX | ALUMINUM CAP | 79% | View |
| EMVH500GTR471MMH0S | United Chemi-Con | CAP ALUM 470UF 20% 50V SMD | 56% | View |
| EMHL160ARA471MJA0G | United Chemi-Con | CAP ALUM 470UF 20% 16V SMD | 54% | View |
