Panasonic Electronic Components
CAP ALUM 1000UF 20% 10V SMD

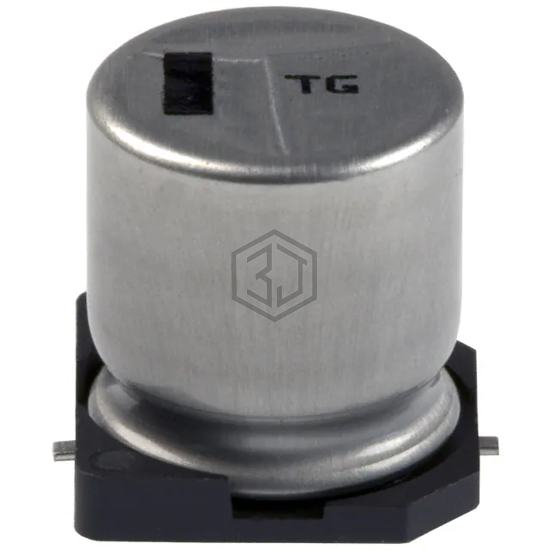

EEV-TG1A102Q is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 1000UF 20% 10V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - rated 10 V, package / case Radial, Can - SMD.
In Stock: 2,916
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | 120mOhm @ 100kHz |
| Lifetime @ Temp. | 2000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 520 mA @ 120 Hz |
| Ripple Current @ High Frequency | 800 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.531" (13.50mm) |
| Surface Mount Land Size | 0.531" L x 0.531" W (13.50mm x 13.50mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UUH1A102MNQ1ZD | Nichicon | CAP ALUM 1000UF 20% 10V SMD | 95% | View |
| UUH1V102MRQ1MS | Nichicon | CAP ALUM 1000UF 20% 35V SMD | 72% | View |
| EEE-TK1C102AM | Panasonic Electronic Components | CAP ALUM 1000UF 20% 16V SMD | 67% | View |
| MAL224699112E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 50V SMD | 58% | View |
| EEV-TG1E102M | Panasonic Electronic Components | CAP ALUM 1000UF 20% 25V SMD | 56% | View |
| EEV-TG1V102M | Panasonic Electronic Components | CAP ALUM 1000UF 20% 35V SMD | 56% | View |
Submit your RFQ for EEV-TG1A102Q and get a quote within 24 hours.
