Panasonic Electronic Components
CAP ALUM 100UF 20% 35V SMD

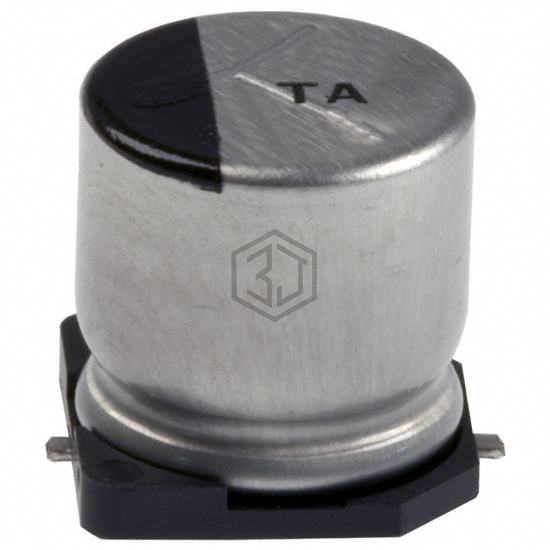

EEV-TA1V101P is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 100UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 2,820
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 65.65 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.402" (10.20mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
EEV-TA1V101P is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEV-TG1V101UP | Panasonic Electronic Components | CAP ALUM 100UF 20% 35V SMD | 78% | View |
| 107UVK035MFE | Cornell Dubilier / Illinois Capacitor | CAP ALUM 100UF 20% 35V SMD | 78% | View |
| MVH25VC101MH10TP | United Chemi-Con | CAP ALUM 100UF 20% 25V SMD | 78% | View |
| UCX1V101MCS1GS | Nichicon | CAP ALUM 100UF 20% 35V SMD | 77% | View |
| EEV-TG1E101P | Panasonic Electronic Components | CAP ALUM 100UF 20% 25V SMD | 64% | View |
| UUE1V101MNS1GS | Nichicon | CAP ALUM 100UF 20% 35V SMD | 64% | View |
Submit your RFQ for EEV-TA1V101P and get a quote within 24 hours.
