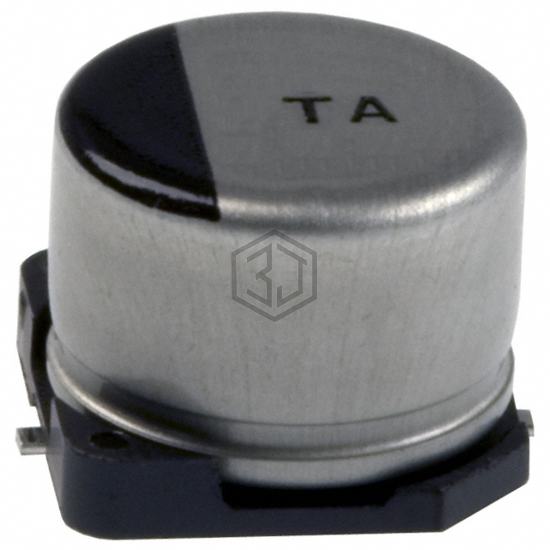

CAP ALUM 22UF 20% 50V SMD
EEV-TA1H220P is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 22UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 6,766
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 32.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.244" (6.20mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
EEV-TA1H220P is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UWH1H220MCL1GS | Nichicon | CAP ALUM 22UF 20% 50V SMD | 95% | View |
| UCJ1H220MCL1GS | Nichicon | CAP ALUM 22UF 20% 50V SMD | 88% | View |
| 35TXV22M6.3X6.1 | Rubycon | CAP ALUM 22UF 20% 35V SMD | 84% | View |
| EDT226M050S9LAA | KEMET | CAP ALUM 22UF 20% 50V SMD | 73% | View |
| EMVH500ADA220MH63G | United Chemi-Con | CAP ALUM 22UF 20% 50V SMD | 72% | View |
| EEE-TG1K220UP | Panasonic Electronic Components | CAP ALUM 22UF 20% 80V SMD | 70% | View |
Submit your RFQ for EEV-TA1H220P and get a quote within 24 hours.
