Panasonic Electronic Components
CAP ALUM 220UF 20% 16V SMD

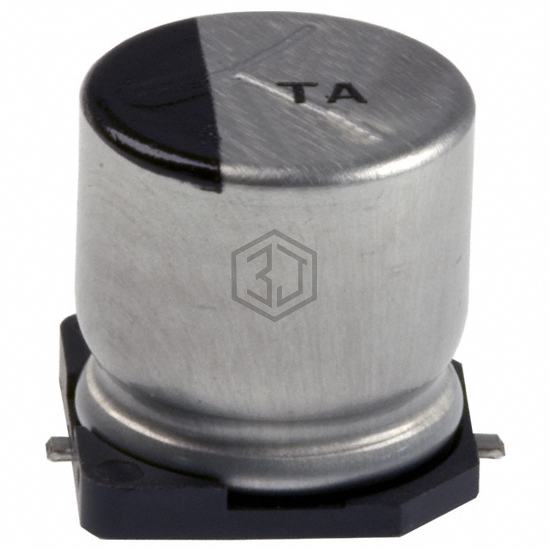

EEV-TA1C221P is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 220UF 20% 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 5,565
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Automotive |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 113 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.402" (10.20mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
EEV-TA1C221P is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| VUJ221M1ETR-1010S | SURGE | CAP ALUM 220UF 20% 25V SMD | 72% | View |
| UWH1E221MCL1GS | Nichicon | CAP ALUM 220UF 20% 25V SMD | 68% | View |
| EEE-TC1C221P | Panasonic Electronic Components | CAP ALUM 220UF 20% 16V SMD | 64% | View |
| UCJ1C221MCL1GS | Nichicon | CAP ALUM 220UF 20% 16V SMD | 64% | View |
| EMHL100ARA221MF80G | United Chemi-Con | CAP ALUM 220UF 20% 10V SMD | 59% | View |
| EEE-TG1E221P | Panasonic Electronic Components | CAP ALUM 220UF 20% 25V SMD | 53% | View |
Submit your RFQ for EEV-TA1C221P and get a quote within 24 hours.
