Panasonic Electronic Components
CAP ALUM 330UF 20% 10V SMD

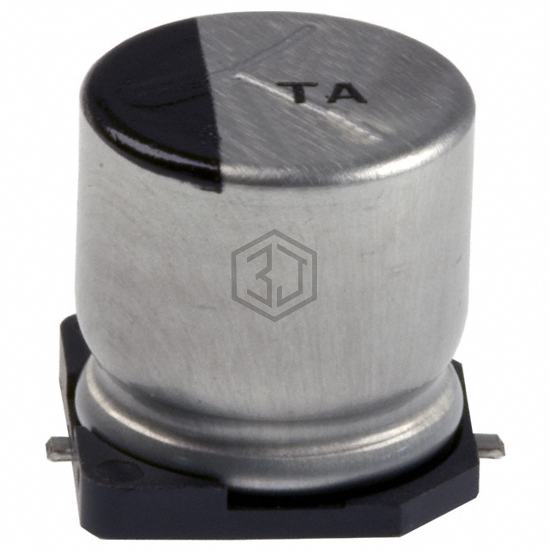

EEV-TA1A331P is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 330UF 20% 10V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - rated 10 V, package / case Radial, Can - SMD.
In Stock: 9,109
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Automotive |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 118 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.402" (10.20mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
EEV-TA1A331P is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEE-TG1A331UP | Panasonic Electronic Components | CAP ALUM 330UF 20% 10V SMD | 83% | View |
| EEE-TG1A331P | Panasonic Electronic Components | CAP ALUM 330UF 20% 10V SMD | 73% | View |
| EEE-TPA331UAV | Panasonic Electronic Components | CAP ALUM 330UF 20% 10V SMD | 73% | View |
| EEE-TC1A331V | Panasonic Electronic Components | CAP ALUM 330UF 20% 10V SMD | 64% | View |
| EEE-TK1C331UP | Panasonic Electronic Components | CAP ALUM 330UF 20% 16V SMD | 54% | View |
| EMHL160ARA331MHA0G | United Chemi-Con | CAP ALUM 330UF 20% 16V SMD | 51% | View |
