Panasonic Electronic Components

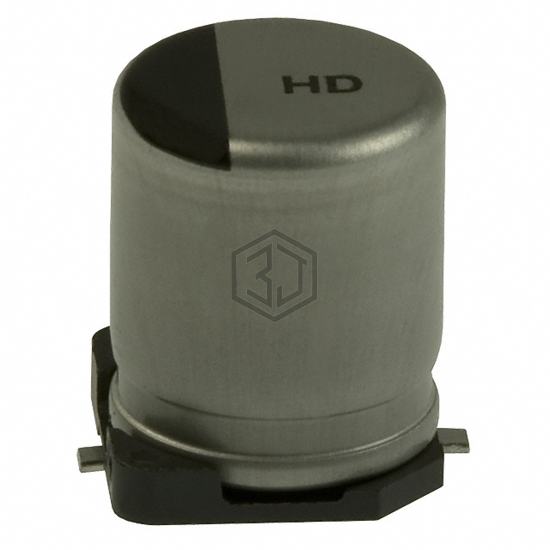

CAP ALUM 4.7UF 20% 100V SMD
EEV-HD2A4R7P is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 4.7UF 20% 100V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can - SMD.
In Stock: 5,727
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 4.7 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 50 mA @ 120 Hz |
| Ripple Current @ High Frequency | 85 mA @ 10 kHz |
| Impedance | 1.5 Ohms |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.402" (10.20mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
EEV-HD2A4R7P is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UUB2E4R7MNL1GS | Nichicon | CAP ALUM 4.7UF 20% 250V SMD | 74% | View |
| 475AXZ035M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 4.7UF 20% 35V SMD | 68% | View |
| AVEZ475M50C12T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 4.7UF 20% 50V SMD | 61% | View |
| ULR2G4R7MNL1GS | Nichicon | CAP ALUM 4.7UF 20% 400V SMD | 60% | View |
| 475SMH050MQ5 | Cornell Dubilier / Illinois Capacitor | CAP ALUM 4.7UF 20% 50V SMD | 56% | View |
| 865080640004 | Würth Elektronik | CAP ALUM 4.7UF 20% 50V SMD | 50% | View |
Submit your RFQ for EEV-HD2A4R7P and get a quote within 24 hours.
