Panasonic Electronic Components

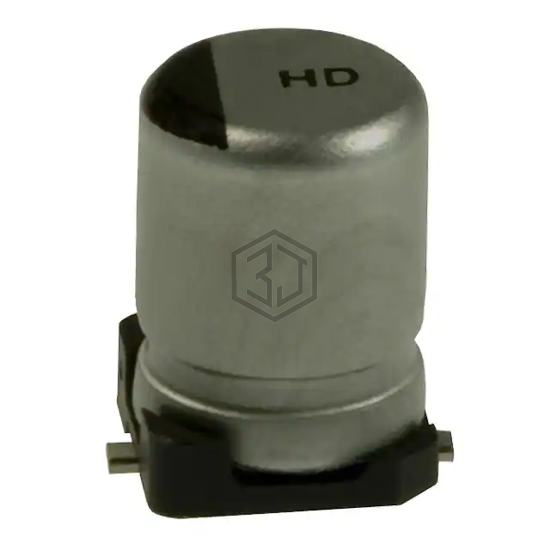

CAP ALUM 4.7UF 20% 35V SMD
EEV-HD1V4R7R is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 4.7UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 8,041
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 4.7 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 17 mA @ 120 Hz |
| Ripple Current @ High Frequency | 28.9 mA @ 10 kHz |
| Impedance | 12 Ohms |
| Lead Spacing | - |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.228" (5.80mm) |
| Surface Mount Land Size | 0.169" L x 0.169" W (4.30mm x 4.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
EEV-HD1V4R7R is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UWT1V4R7MCL1GB | Nichicon | CAP ALUM 4.7UF 20% 35V SMD | 91% | View |
| 865230642008 | Würth Elektronik | CAP ALUM 4.7UF 20% 50V SMD | 86% | View |
| EDH475M050A9DAA | KEMET | CAP ALUM 4.7UF 20% 50V SMD | 82% | View |
| MVK50VC4R7ME55TP | United Chemi-Con | CAP ALUM 4.7UF 20% 50V SMD | 82% | View |
| 475SMH050MQ5 | Cornell Dubilier / Illinois Capacitor | CAP ALUM 4.7UF 20% 50V SMD | 77% | View |
| BMVK160ADA4R7MD60G | United Chemi-Con | CAP ALUM 4.7UF 20% 16V SMD | 60% | View |
Submit your RFQ for EEV-HD1V4R7R and get a quote within 24 hours.
