Panasonic Electronic Components
CAP ALUM 33UF 20% 50V SMD

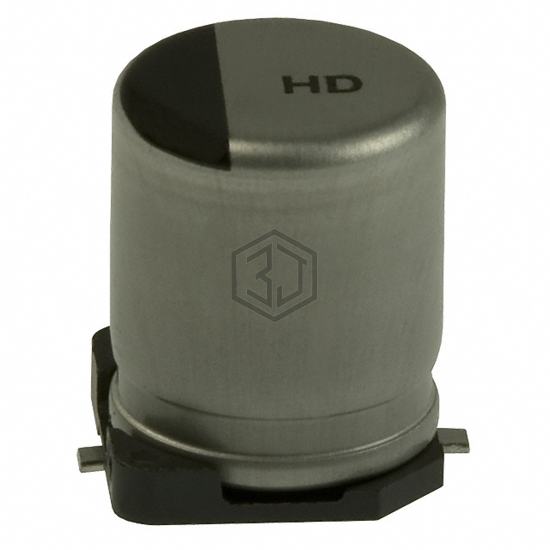

EEV-HD1H330P is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 33UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 6,479
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 74 mA @ 120 Hz |
| Ripple Current @ High Frequency | 125.8 mA @ 10 kHz |
| Impedance | 1.5 Ohms |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.402" (10.20mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
EEV-HD1H330P is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EMK1HM330E83D00R | AiSHi Capacitors | ALUMINUM E-CAP SMT | 87% | View |
| EDT336M035A9HAA | KEMET | CAP ALUM 33UF 20% 35V SMD | 82% | View |
| UWD1H330MCL1GS | Nichicon | CAP ALUM 33UF 20% 50V SMD | 78% | View |
| 50SKV33M8X10.5 | Rubycon | CAP ALUM 33UF 20% 50V SMD | 74% | View |
| UWG1E330MCL1GB | Nichicon | CAP ALUM 33UF 20% 25V SMD | 73% | View |
| EEE-HBE330UAR | Panasonic Electronic Components | CAP ALUM 33UF 20% 25V SMD | 60% | View |
