Panasonic Electronic Components
CAP ALUM 10UF 20% 50V SMD

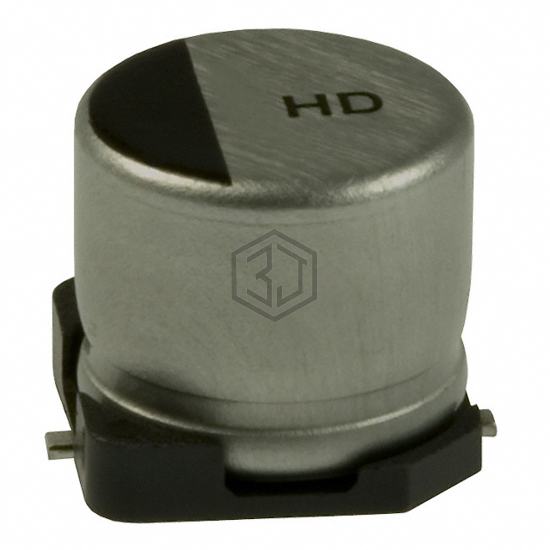

EEV-HD1H100P is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 10UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 6,725
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 33 mA @ 120 Hz |
| Ripple Current @ High Frequency | 56.1 mA @ 10 kHz |
| Impedance | 4 Ohms |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.228" (5.80mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
EEV-HD1H100P is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 50SJV10M6.3X6.1 | Rubycon | CAP ALUM 10UF 20% 50V SMD | 99% | View |
| EMVL500ADA100MF60G | United Chemi-Con | CAP ALUM 10UF 20% 50V SMD | 92% | View |
| UWZ1H100MCL1GB | Nichicon | CAP ALUM 10UF 20% 50V SMD | 92% | View |
| EMLA500ADA100MF61G | United Chemi-Con | CAP ALUM 10UF 20% 50V SMD | 83% | View |
| EEE-HD1V100AR | Panasonic Electronic Components | CAP ALUM 10UF 20% 35V SMD | 77% | View |
| 16RZV10M4X5.5 | Rubycon | CAP ALUM 10UF 20% 16V SMD | 74% | View |
Submit your RFQ for EEV-HD1H100P and get a quote within 24 hours.
