Panasonic Electronic Components
CAP ALUM 47UF 20% 25V SMD

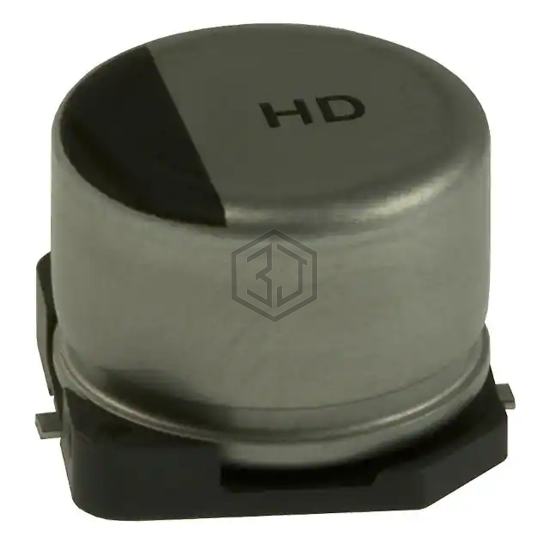

EEV-HD1E470P is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 47UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 5,308
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 56 mA @ 120 Hz |
| Ripple Current @ High Frequency | 95.2 mA @ 10 kHz |
| Impedance | 2 Ohms |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.244" (6.20mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
EEV-HD1E470P is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UWT1E470MCR6GS | Nichicon | CAP ALUM 47UF 20% 25V SMD | 97% | View |
| UUE1V470MNS1GS | Nichicon | CAP ALUM 47UF 20% 35V SMD | 84% | View |
| 25SGV47M8X6.5 | Rubycon | CAP ALUM 47UF 20% 25V SMD | 80% | View |
| 865080140004 | Würth Elektronik | CAP ALUM 47UF 20% 6.3V SMD | 79% | View |
| UWT1H470MCL1GS | Nichicon | CAP ALUM 47UF 20% 50V SMD | 76% | View |
| EDH476M010S9GAA | KEMET | CAP ALUM 47UF 20% 10V SMD | 72% | View |
Submit your RFQ for EEV-HD1E470P and get a quote within 24 hours.
