Panasonic Electronic Components
CAP ALUM 100UF 20% 25V SMD

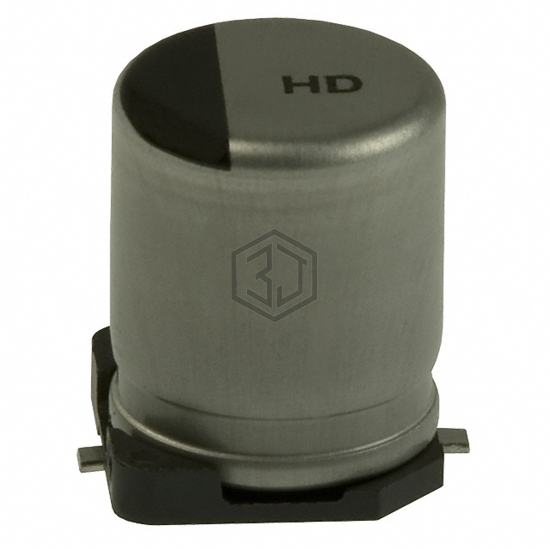

EEV-HD1E101P is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 100UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 8,122
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 84 mA @ 120 Hz |
| Ripple Current @ High Frequency | 142.8 mA @ 10 kHz |
| Impedance | 1.5 Ohms |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.402" (10.20mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
EEV-HD1E101P is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| VEU101M1CTR-0607S | Surge | CAP ALUM 16V POLAR | 80% | View |
| EEV-HA1V101UP | Panasonic Electronic Components | CAP ALUM 100UF 20% 35V SMD | 75% | View |
| EEV-TG1J101UP | Panasonic Electronic Components | CAP ALUM 100UF 20% 63V SMD | 74% | View |
| EEE-HB1A101P | Panasonic Electronic Components | CAP ALUM 100UF 20% 10V SMD | 66% | View |
| EMHJ250ARA101MHA0G | Chemi-Con | CAP ALUM 100UF 20% 25V SMD | 66% | View |
| AVES107M10D16T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 100UF 20% 10V SMD | 59% | View |
Submit your RFQ for EEV-HD1E101P and get a quote within 24 hours.
