Panasonic Electronic Components
CAP ALUM 47UF 20% 16V SMD

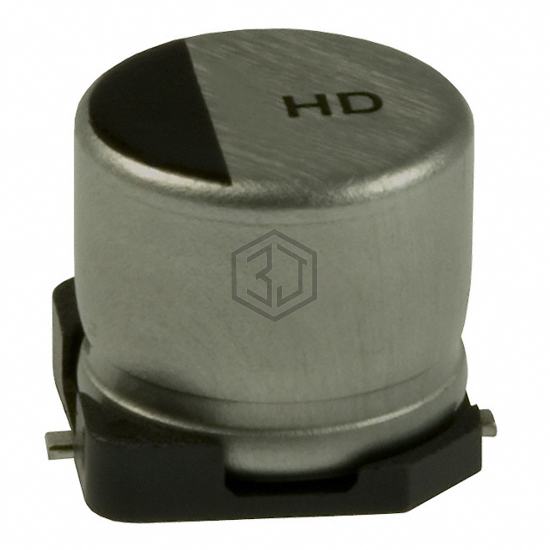

EEV-HD1C470P is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 47UF 20% 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 3,955
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 55 mA @ 120 Hz |
| Ripple Current @ High Frequency | 93.5 mA @ 10 kHz |
| Impedance | 4 Ohms |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.228" (5.80mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
EEV-HD1C470P is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEE-HD1C470AP | Panasonic Electronic Components | CAP ALUM 47UF 20% 16V SMD | 90% | View |
| EDT476M025A9HAA | KEMET | CAP ALUM 47UF 20% 25V SMD | 79% | View |
| UWT1A470MCL1GB | Nichicon | CAP ALUM 47UF 20% 10V SMD | 74% | View |
| 25SLV47M6.3X6.1 | Rubycon | CAP ALUM 47UF 20% 25V SMD | 71% | View |
| EEE-FN1K470UP | Panasonic Electronic Components | CAP ALUM 47UF 20% 80V SMD | 61% | View |
| EEE-FK1C470UR | Panasonic Electronic Components | CAP ALUM 47UF 20% 16V SMD | 59% | View |
