Panasonic Electronic Components

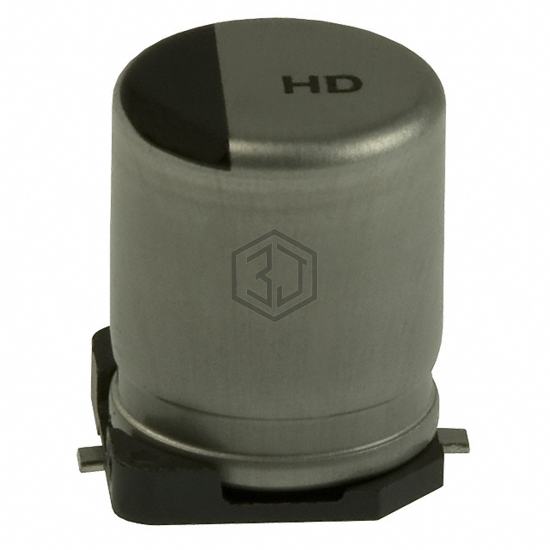

CAP ALUM 100UF 20% 16V SMD
EEV-HD1C101P is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 100UF 20% 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 3,586
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 89 mA @ 120 Hz |
| Ripple Current @ High Frequency | 151.3 mA @ 10 kHz |
| Impedance | 1.5 Ohms |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.402" (10.20mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
EEV-HD1C101P is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AHA107M16D16T-F | Cornell Dubilier Knowles | CAP ALUM 100UF 20% 16V SMD | 89% | View |
| EMVL160ARA101MF80G | Chemi-Con | CAP ALUM 100UF 20% 16V SMD | 85% | View |
| AHA107M25E16T-F | Cornell Dubilier Knowles | CAP ALUM 100UF 20% 25V SMD | 85% | View |
| AVGA107M25X16T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 100UF 20% 25V SMD | 78% | View |
| AHD107M25F24B | Cornell Dubilier Electronics (CDE) | CAP ALUM 100UF 20% 25V SMD | 78% | View |
| ATB107M016E058 | Cornell Dubilier Knowles | CAP ALUM 100UF 20% 16V SMD | 74% | View |
Submit your RFQ for EEV-HD1C101P and get a quote within 24 hours.
