Panasonic Electronic Components

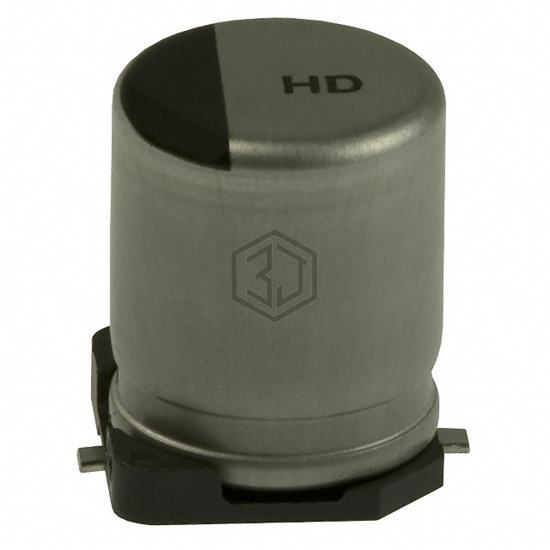

CAP ALUM 220UF 20% 10V SMD
EEV-HD1A221P is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 220UF 20% 10V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can - SMD.
In Stock: 1,331
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 93 mA @ 120 Hz |
| Ripple Current @ High Frequency | 158.1 mA @ 10 kHz |
| Impedance | 1.5 Ohms |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.402" (10.20mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
EEV-HD1A221P is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UUQ1A221MCL1GS | Nichicon | CAP ALUM 220UF 20% 10V SMD | 97% | View |
| UWT1C221MCL1GS | Nichicon | CAP ALUM 220UF 20% 16V SMD | 83% | View |
| 6.3SGV220M6.3X8 | Rubycon | CAP ALUM 220UF 20% 6.3V SMD | 78% | View |
| EEE-FK1A221XV | Panasonic Electronic Components | CAP ALUM 220UF 20% 10V SMD | 67% | View |
| EEE-HAC221UAP | Panasonic Electronic Components | CAP ALUM 220UF 20% 16V SMD | 63% | View |
| UUD0J221MCL1GS | Nichicon | CAP ALUM 220UF 20% 6.3V SMD | 62% | View |
Submit your RFQ for EEV-HD1A221P and get a quote within 24 hours.
