Panasonic Electronic Components

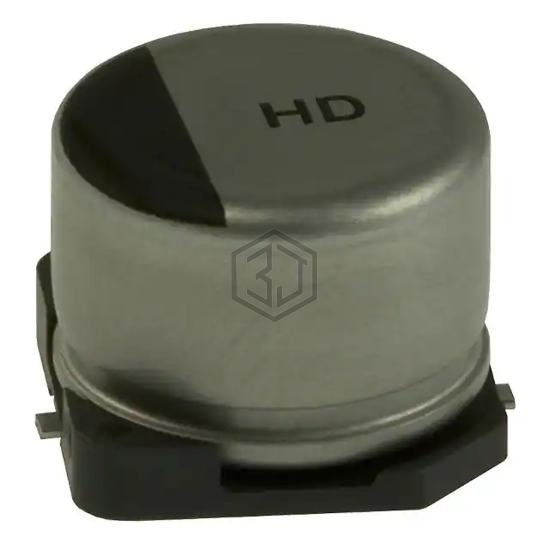

CAP ALUM 100UF 20% 10V SMD
EEV-HD1A101P is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 100UF 20% 10V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can - SMD.
In Stock: 1,787
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 62 mA @ 120 Hz |
| Ripple Current @ High Frequency | 105.4 mA @ 10 kHz |
| Impedance | 2 Ohms |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.244" (6.20mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
EEV-HD1A101P is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AHA107M16D16T-F | Cornell Dubilier Knowles | CAP ALUM 100UF 20% 16V SMD | 80% | View |
| AVGA107M16D16T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 100UF 20% 16V SMD | 77% | View |
| EMVL160ARA101MF80G | Chemi-Con | CAP ALUM 100UF 20% 16V SMD | 75% | View |
| AHD107M16F24T | Cornell Dubilier Electronics (CDE) | CAP ALUM 100UF 20% 16V SMD | 69% | View |
| UCQ1C101MCL1GS | Nichicon | CAP ALUM 100UF 20% 16V SMD | 66% | View |
| EMK1VM101E83D00R | AiSHi Capacitors | ALUMINUM E-CAP SMT | 56% | View |
Submit your RFQ for EEV-HD1A101P and get a quote within 24 hours.
