Panasonic Electronic Components

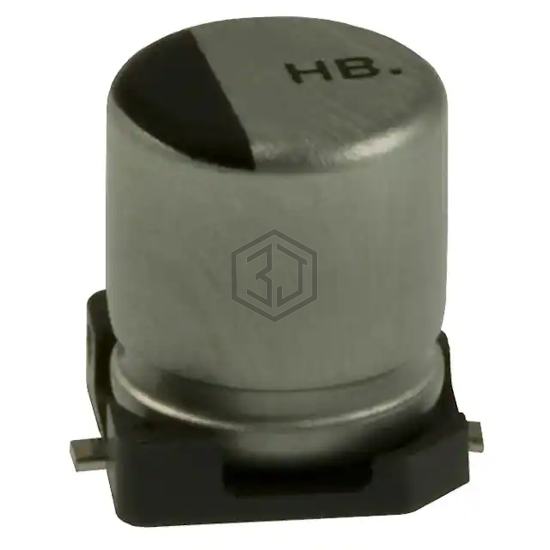

CAP ALUM 4.7UF 20% 50V SMD
EEV-HB1H4R7R is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 4.7UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 8,211
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 4.7 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 23 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.228" (5.80mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
EEV-HB1H4R7R is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 475SVL050MDW | Cornell Dubilier / Illinois Capacitor | CAP ALUM 4.7UF 20% 50V SMD | 97% | View |
| 50TZV4R7M4X6.1 | Rubycon | CAP ALUM 4.7UF 20% 50V SMD | 92% | View |
| UUP1V4R7MCL1GS | Nichicon | CAP ALUM 4.7UF 20% 35V SMD | 77% | View |
| 865060642004 | Würth Elektronik | CAP ALUM 4.7UF 20% 50V SMD | 75% | View |
| EMVL350ADA4R7MD60G | United Chemi-Con | CAP ALUM 4.7UF 20% 35V SMD | 71% | View |
| AVES475M35B12T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 4.7UF 20% 35V SMD | 69% | View |
