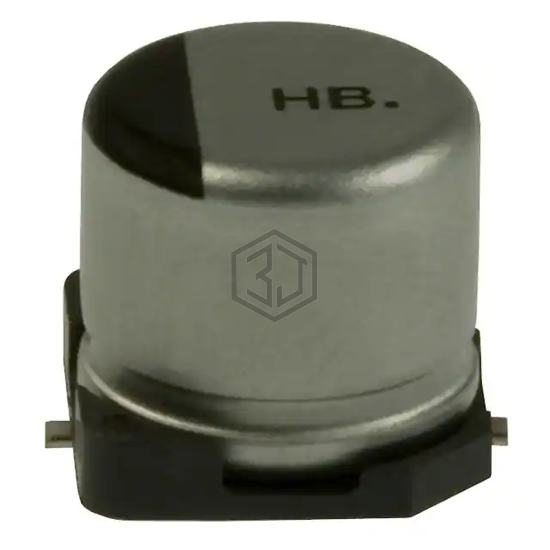

Panasonic Electronic Components
CAP ALUM 100UF 20% 6.3V SMD
EEV-HB0J101P is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 100UF 20% 6.3V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can - SMD.
In Stock: 8,822
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 71 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.228" (5.80mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
EEV-HB0J101P is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MALSECV00AD310BARK | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 100UF 20% 6.3V SMD | 100% | View |
| UWZ0J101MCL1GS | Nichicon | CAP ALUM 100UF 20% 6.3V SMD | 95% | View |
| MVK6.3VC101MF55TP | United Chemi-Con | CAP ALUM 100UF 20% 6.3V SMD | 92% | View |
| AVEZ107M06D16T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 100UF 20% 6.3V SMD | 79% | View |
| EMVH101ATR101MLH0S | United Chemi-Con | CAP ALUM 100UF 20% 100V SMD | 56% | View |
| EMVY250ADB101MF80G | United Chemi-Con | CAP ALUM 100UF 20% 25V SMD | 56% | View |
Submit your RFQ for EEV-HB0J101P and get a quote within 24 hours.
