Panasonic Electronic Components
CAP ALUM 22UF 20% 63V SMD

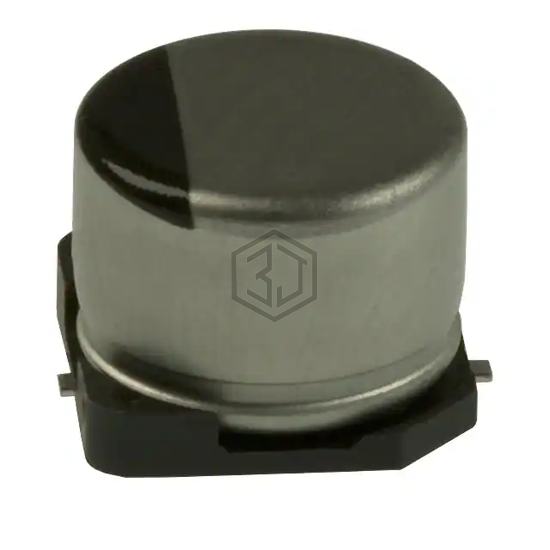

EEV-HA1J220UP is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 22UF 20% 63V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can - SMD.
In Stock: 6,219
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 30 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.244" (6.20mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
EEV-HA1J220UP is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EMVE500ADA220MF60G | United Chemi-Con | CAP ALUM 22UF 20% 50V SMD | 76% | View |
| 865230645010 | Würth Elektronik | CAP ALUM 22UF 20% 50V SMD | 73% | View |
| 226SMH050M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 22UF 20% 50V SMD | 73% | View |
| EEE-FN1J220XP | Panasonic Electronic Components | CAP ALUM 22UF 20% 63V SMD | 69% | View |
| UZG1A220MCL1GB | Nichicon | CAP ALUM 22UF 20% 10V SMD | 64% | View |
| 226SMH016M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 22UF 20% 16V SMD | 63% | View |
Submit your RFQ for EEV-HA1J220UP and get a quote within 24 hours.
