Panasonic Electronic Components
CAP ALUM 10UF 20% 25V SMD

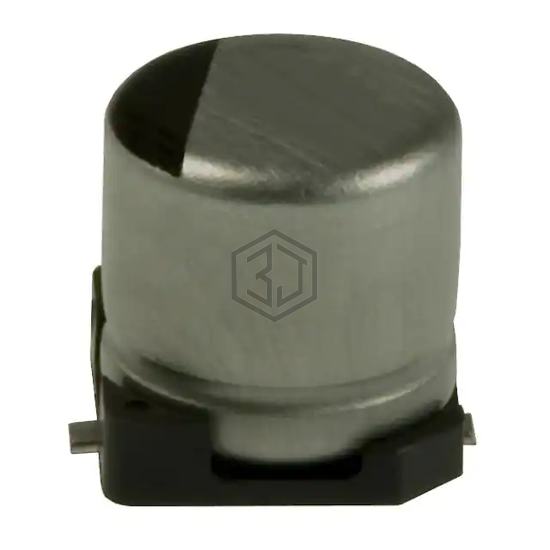

EEV-HA1E100R is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 10UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 5,665
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 28 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.213" (5.40mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
EEV-HA1E100R is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UUL1E100MCL1GS | Nichicon | CAP ALUM 10UF 20% 25V SMD | 96% | View |
| EMLA250ADA100ME61G | United Chemi-Con | CAP ALUM 10UF 20% 25V SMD | 90% | View |
| EDH106M016S9BAA | KEMET | CAP ALUM 10UF 20% 16V SMD | 82% | View |
| EDH106M016A9BAA | KEMET | CAP ALUM 10UF 20% 16V SMD | 82% | View |
| EMVY350ADA100ME55G | United Chemi-Con | CAP ALUM 10UF 20% 35V SMD | 76% | View |
| UUB1H100MCL1GS | Nichicon | CAP ALUM 10UF 20% 50V SMD | 66% | View |
Submit your RFQ for EEV-HA1E100R and get a quote within 24 hours.
