Panasonic Electronic Components

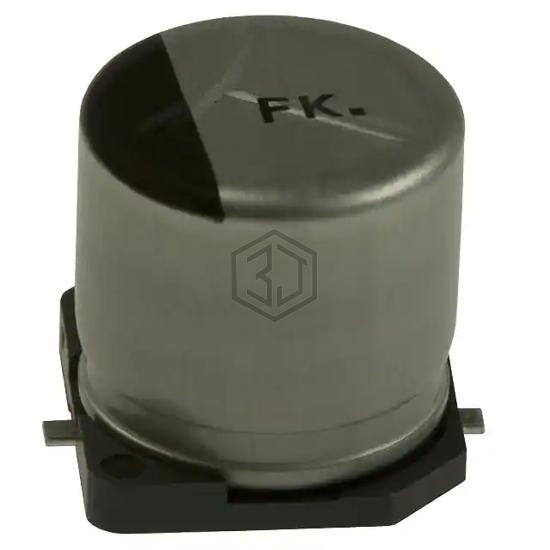

CAP ALUM 330UF 20% 35V SMD
EEV-FK1V331GP is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 330UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 4,799
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 637.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 850 mA @ 100 kHz |
| Impedance | 80 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
EEV-FK1V331GP is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEE-FT1V331AP | Panasonic Electronic Components | CAP ALUM 330UF 20% 35V SMD | 97% | View |
| MAL215097002E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 35V SMD | 88% | View |
| EEE-FP1V331AV | Panasonic Electronic Components | CAP ALUM 330UF 20% 35V SMD | 87% | View |
| VZU331M1HTR-1010S | SURGE | CAP ALUM 330UF 20% 50V SMD | 80% | View |
| 865080557015 | Würth Elektronik | CAP ALUM 330UF 20% 35V SMD | 78% | View |
| VUJ331M1ETR-1313S | SURGE | CAP ALUM 330UF 20% 25V SMD | 77% | View |
Submit your RFQ for EEV-FK1V331GP and get a quote within 24 hours.
