Panasonic Electronic Components

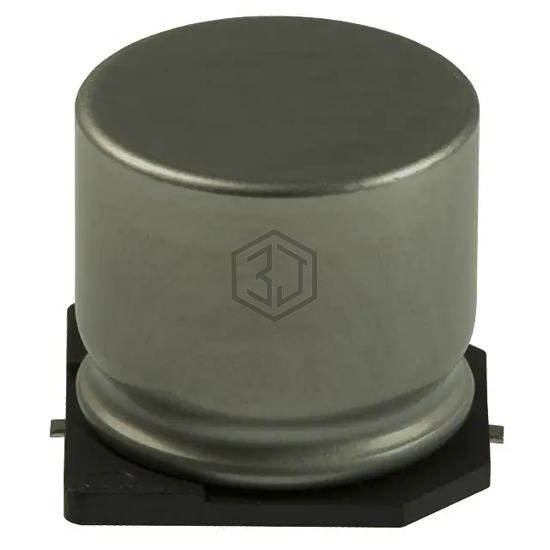

CAP ALUM 680UF 20% 63V SMD
EEV-FK1J681M is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 680UF 20% 63V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can - SMD.
In Stock: 2,815
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 1.268 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.69 A @ 100 kHz |
| Impedance | 80 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.669" (17.00mm) |
| Surface Mount Land Size | 0.748" L x 0.748" W (19.00mm x 19.00mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCD1J681MNQ1MS | Nichicon | CAP ALUM 680UF 20% 63V SMD | 92% | View |
| MAL225099819E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 63V SMD | 75% | View |
| MAL215099114E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 50V SMD | 72% | View |
| MAL214699503E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 16V SMD | 62% | View |
| EEE-FK1V681AV | Panasonic Electronic Components | CAP ALUM 680UF 20% 35V SMD | 62% | View |
| EMZS350ARA681MJA0G | United Chemi-Con | CAP ALUM 680UF 20% 35V SMD | 60% | View |
