Panasonic Electronic Components

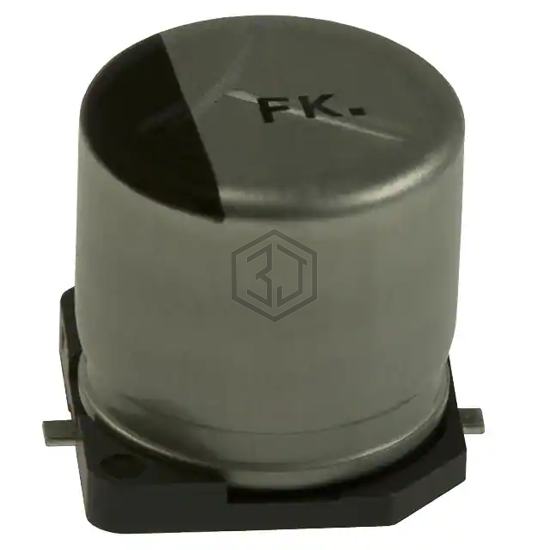

CAP ALUM 220UF 20% 50V SMD
EEV-FK1H221GP is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 220UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 4,438
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 502.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 670 mA @ 100 kHz |
| Impedance | 180 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
EEV-FK1H221GP is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCM1H221MNS1GS | Nichicon | CAP ALUM 50V POLAR | 92% | View |
| VZH221M1VTR-0810CS | SURGE | CAP ALUM 220UF 20% 35V SMD | 83% | View |
| 35TZV220M8X10.5 | Rubycon | CAP ALUM 220UF 20% 35V SMD | 80% | View |
| UWG1V221MNL1GS | Nichicon | CAP ALUM 220UF 20% 35V SMD | 80% | View |
| EMVY500GDA221MJA0G | United Chemi-Con | CAP ALUM 220UF 20% 50V SMD | 73% | View |
| UUD1E221MNL1GS | Nichicon | CAP ALUM 220UF 20% 25V SMD | 56% | View |
Submit your RFQ for EEV-FK1H221GP and get a quote within 24 hours.
