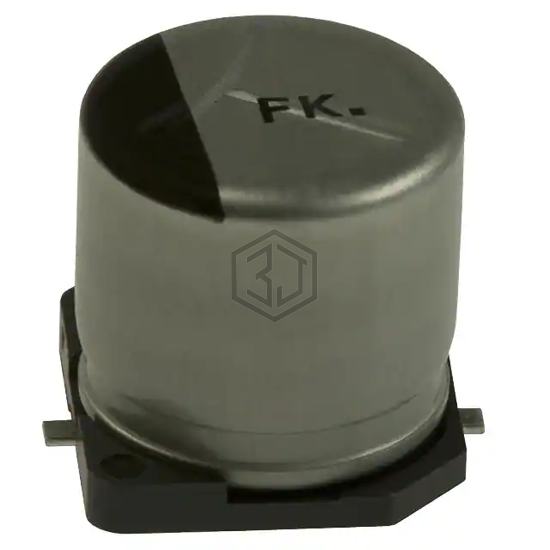

Panasonic Electronic Components
CAP ALUM 470UF 20% 25V SMD
EEV-FK1E471P is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 470UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 8,225
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 850 mA @ 100 kHz |
| Impedance | 80 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
EEV-FK1E471P is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 25TPV470M8X10.5 | Rubycon | CAP ALUM 470UF 20% 25V SMD | 100% | View |
| EXV477M016A9PAA | KEMET | CAP ALUM 470UF 20% 16V SMD | 78% | View |
| UUJ1H471MNQ6MS | Nichicon | CAP ALUM 470UF 20% 50V SMD | 70% | View |
| VZH471M1CTR-0810CS | SURGE | CAP ALUM 470UF 20% 16V SMD | 65% | View |
| AEA0810471M010R | KYOCERA AVX | ALUMINUM CAP | 55% | View |
| UWT1C471MNL1GS | Nichicon | CAP ALUM 470UF 20% 16V SMD | 52% | View |
