Panasonic Electronic Components

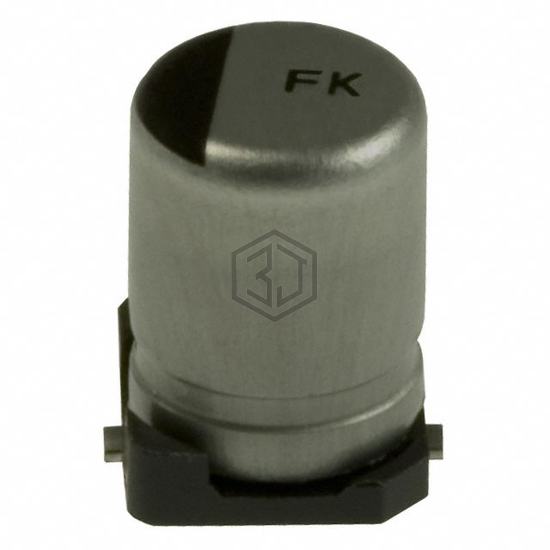

CAP ALUM 33UF 20% 10V SMD
EEV-FK1A330UR is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 33UF 20% 10V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can - SMD.
In Stock: 8,428
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 67.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 90 mA @ 100 kHz |
| Impedance | 1.35 Ohms |
| Lead Spacing | - |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.240" (6.10mm) |
| Surface Mount Land Size | 0.169" L x 0.169" W (4.30mm x 4.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
EEV-FK1A330UR is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UUX1V330MCL6GS | Nichicon | CAP ALUM 33UF 20% 35V SMD | 69% | View |
| UWG1E330MCL1GB | Nichicon | CAP ALUM 33UF 20% 25V SMD | 68% | View |
| EEV336M016S9DAA | KEMET | CAP ALUM 33UF 20% 16V SMD | 62% | View |
| UCQ1E330MCL1GB | Nichicon | CAP ALUM 33UF 20% 25V SMD | 57% | View |
| EEE-FP1A330AR | Panasonic Electronic Components | CAP ALUM 33UF 20% 10V SMD | 56% | View |
| EMK1HM330E83D00R | AiSHi Capacitors | ALUMINUM E-CAP SMT | 55% | View |
