Panasonic Electronic Components
CAP ALUM 47UF 20% 6.3V SMD

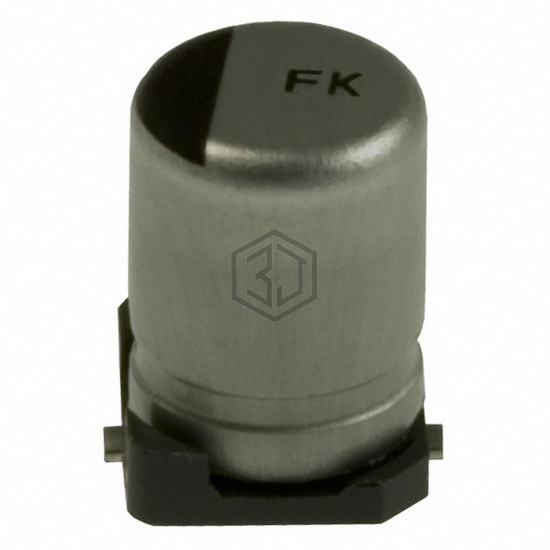

EEV-FK0J470UR is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 47UF 20% 6.3V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can - SMD.
In Stock: 2,179
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 67.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 90 mA @ 100 kHz |
| Impedance | 1.35 Ohms |
| Lead Spacing | - |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.240" (6.10mm) |
| Surface Mount Land Size | 0.169" L x 0.169" W (4.30mm x 4.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
EEV-FK0J470UR is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AVEZ476M06C12T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 47UF 20% 6.3V SMD | 89% | View |
| 6.3SGV47M5X6.1 | Rubycon | CAP ALUM 47UF 20% 6.3V SMD | 88% | View |
| UWZ1H470MCL1GS | Nichicon | CAP ALUM 47UF 20% 50V SMD | 76% | View |
| UWZ1V470MCL1GS | Nichicon | CAP ALUM 47UF 20% 35V SMD | 76% | View |
| 16SKV47M6.3X5.5 | Rubycon | CAP ALUM 47UF 20% 16V SMD | 73% | View |
| UWZ1C470MCL1GB | Nichicon | CAP ALUM 47UF 20% 16V SMD | 67% | View |
Submit your RFQ for EEV-FK0J470UR and get a quote within 24 hours.
