Panasonic Electronic Components
CAP ALUM 330UF 20% 6.3V SMD

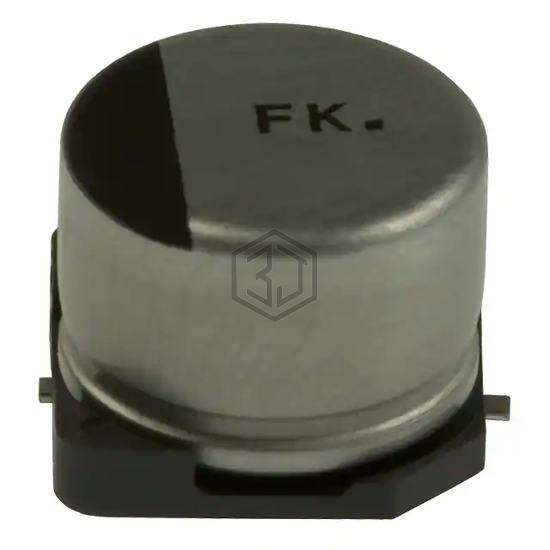

EEV-FK0J331P is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 330UF 20% 6.3V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can - SMD.
In Stock: 9,945
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 300 mA @ 100 kHz |
| Impedance | 260 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.256" (6.50mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
EEV-FK0J331P is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEE-FT0J331AL | Panasonic Electronic Components | CAP ALUM 330UF 20% 6.3V SMD | 100% | View |
| 865080149011 | Würth Elektronik | CAP ALUM 330UF 20% 6.3V SMD | 95% | View |
| 337SMH6R3M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 330UF 20% 6.3V SMD | 88% | View |
| UCL0J331MCL6GS | Nichicon | CAP ALUM 330UF 20% 6.3V SMD | 80% | View |
| MAL214097501E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 16V SMD | 61% | View |
| MAL214099815E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 63V SMD | 58% | View |
Submit your RFQ for EEV-FK0J331P and get a quote within 24 hours.
