Panasonic Electronic Components
CAP ALUM 6.8UF 20% 35V SMD

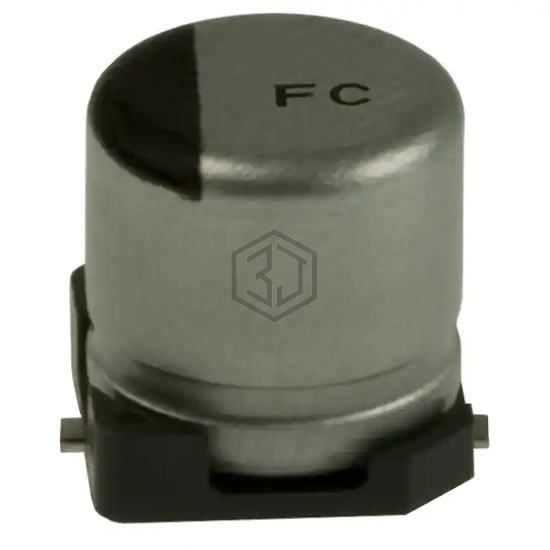

EEV-FC1V6R8R is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 6.8UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 8,377
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 6.8 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 71.25 mA @ 120 Hz |
| Ripple Current @ High Frequency | 95 mA @ 100 kHz |
| Impedance | 1.8 Ohms |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.213" (5.40mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
EEV-FC1V6R8R is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 685AXZ050M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 6.8UF 20% 50V SMD | 77% | View |
| UUB2D6R8MNL1GS | Nichicon | CAP ALUM 6.8UF 20% 200V SMD | 73% | View |
| ULV2G6R8MNL1GS | Nichicon | CAP ALUM 6.8UF 20% 400V SMD | 66% | View |
| UUX2D6R8MNL1GS | Nichicon | CAP ALUM 6.8UF 20% 200V SMD | 61% | View |
| EEE-HBV6R8UAR | Panasonic Electronic Components | CAP ALUM 6.8UF 20% 35V SMD | 56% | View |
| EMVH401GDA6R8MLH0S | United Chemi-Con | CAP ALUM 6.8UF 20% 400V SMD | 56% | View |
Submit your RFQ for EEV-FC1V6R8R and get a quote within 24 hours.
