Panasonic Electronic Components

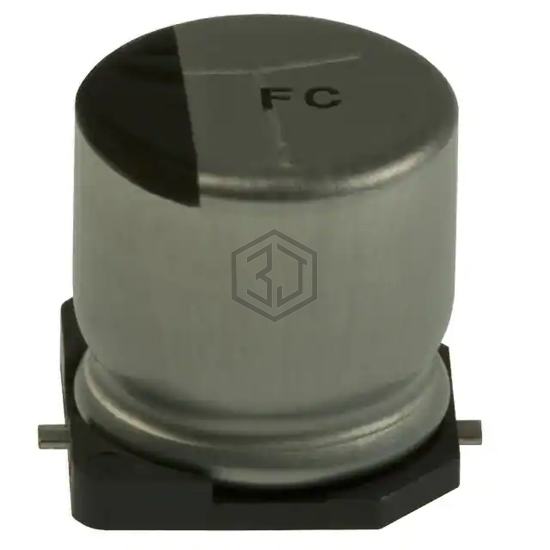

CAP ALUM 100UF 20% 35V SMD
EEV-FC1V101P is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 100UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 2,349
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 502.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 670 mA @ 100 kHz |
| Impedance | 150 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.402" (10.20mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
EEV-FC1V101P is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEV-FK1V101P | Panasonic Electronic Components | CAP ALUM 100UF 20% 35V SMD | 96% | View |
| AVRF107M35F24T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 100UF 20% 35V SMD | 96% | View |
| AFK107M35F24B-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 100UF 20% 35V SMD | 95% | View |
| UCD1V101MCL1GS | Nichicon | CAP ALUM 100UF 20% 35V SMD | 86% | View |
| 107AVD035MFE | Cornell Dubilier / Illinois Capacitor | CAP ALUM 100UF 20% 35V SMD | 85% | View |
| MVE100VE101ML17TR | United Chemi-Con | CAP ALUM 100UF 20% 100V SMD | 68% | View |
Submit your RFQ for EEV-FC1V101P and get a quote within 24 hours.
