Panasonic Electronic Components

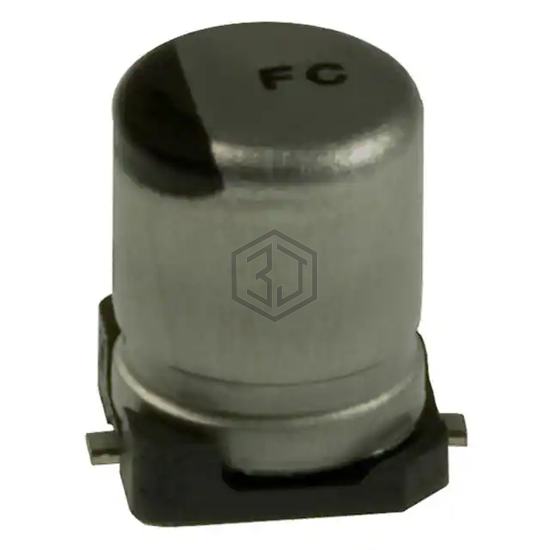

CAP ALUM 2.2UF 20% 50V SMD
EEV-FC1H2R2R is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 2.2UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 6,459
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 2.2 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 22.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 30 mA @ 100 kHz |
| Impedance | 5 Ohms |
| Lead Spacing | - |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.213" (5.40mm) |
| Surface Mount Land Size | 0.169" L x 0.169" W (4.30mm x 4.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
EEV-FC1H2R2R is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 225SMH050M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 2.2UF 20% 50V SMD | 86% | View |
| UUP1H2R2MCL1GS | Nichicon | CAP ALUM 2.2UF 20% 50V SMD | 77% | View |
| AEH08102R2M400R | KYOCERA AVX | ALUMINUM CAP | 72% | View |
| UT225M063HCHTA | Aillen | CAP. ALUM 2.2UF 63V 20% SMD | 70% | View |
| 50SKV2.2M4X5.5 | Rubycon | CAP ALUM 2.2UF 20% 50V SMD | 69% | View |
| UUB2G2R2MNL1GS | Nichicon | CAP ALUM 2.2UF 20% 400V SMD | 56% | View |
Submit your RFQ for EEV-FC1H2R2R and get a quote within 24 hours.
