Panasonic Electronic Components

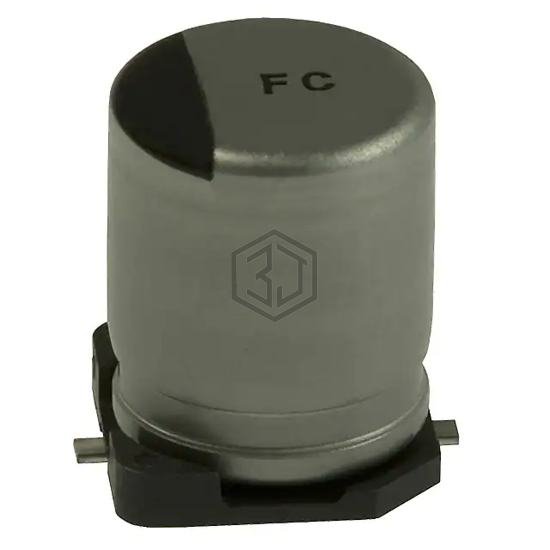

CAP ALUM 68UF 20% 25V SMD
EEV-FC1E680P is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 68UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 9,019
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 337.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 450 mA @ 100 kHz |
| Impedance | 300 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.402" (10.20mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
EEV-FC1E680P is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEE-FPV680XAV | Panasonic Electronic Components | CAP ALUM 68UF 20% 35V SMD | 79% | View |
| AFK686M2AH32T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 68UF 20% 100V SMD | 77% | View |
| EEV-FK2A680V | Panasonic Electronic Components | CAP ALUM 68UF 20% 100V SMD | 77% | View |
| AFK686M2AH32VT-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 68UF 20% 100V SMD | 73% | View |
| EEE-FP1C680AL | Panasonic Electronic Components | CAP ALUM 68UF 20% 16V SMD | 64% | View |
| UCM1V680MCL1GS | Nichicon | CAP ALUM 68UF 20% 35V SMD | 64% | View |
Submit your RFQ for EEV-FC1E680P and get a quote within 24 hours.
