Panasonic Electronic Components
CAP ALUM 470UF 20% 10V SMD

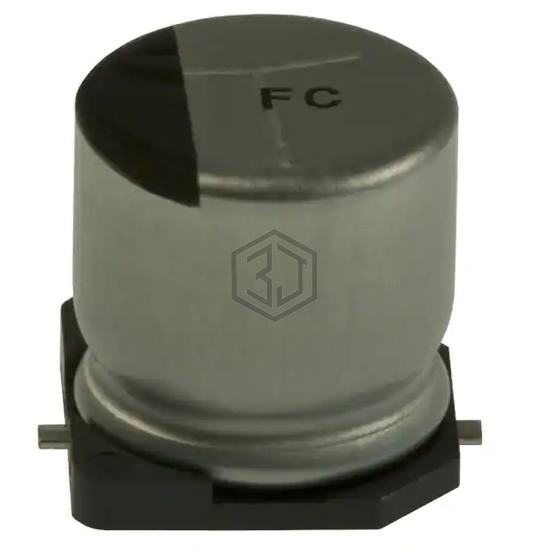

EEV-FC1A471P is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 470UF 20% 10V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can - SMD.
In Stock: 9,379
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 502.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 670 mA @ 100 kHz |
| Impedance | 150 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.402" (10.20mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
EEV-FC1A471P is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEE-FK1A471V | Panasonic Electronic Components | CAP ALUM 470UF 20% 10V SMD | 95% | View |
| EEE-FK1A471AV | Panasonic Electronic Components | CAP ALUM 470UF 20% 10V SMD | 91% | View |
| UUE1C471MNS1MS | Nichicon | CAP ALUM 470UF 20% 16V SMD | 83% | View |
| EEE-FK0J471V | Panasonic Electronic Components | CAP ALUM 470UF 20% 6.3V SMD | 81% | View |
| 16JZV470M8X10.5 | Rubycon | CAP ALUM 470UF 20% 16V SMD | 78% | View |
| 477SMH016M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 470UF 20% 16V SMD | 70% | View |
