Panasonic Electronic Components
CAP ALUM 100UF 20% 10V SMD

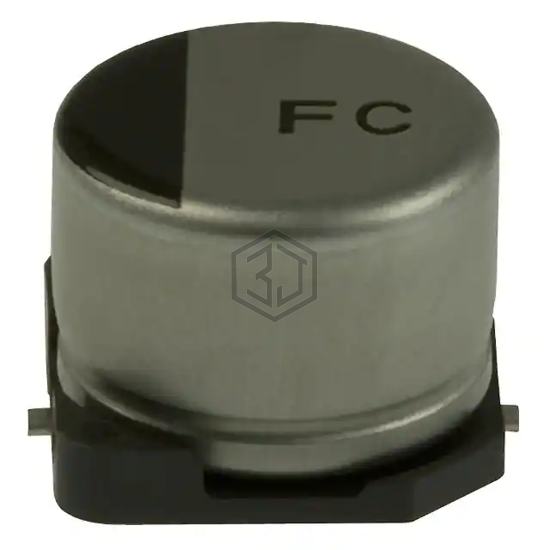

EEV-FC1A101P is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 100UF 20% 10V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can - SMD.
In Stock: 5,056
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 172.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 230 mA @ 100 kHz |
| Impedance | 400 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.244" (6.20mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
EEV-FC1A101P is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UUN1V101MNJ1MS | Nichicon | CAP ALUM 100UF 20% 35V SMD | 74% | View |
| EMZA160ARA101MF61G | Chemi-Con | CAP ALUM 100UF 20% 16V SMD | 73% | View |
| UCM1H101MCS1GS | Nichicon | CAP ALUM 50V POLAR | 71% | View |
| EMVL500ARA101MJA0G | Chemi-Con | CAP ALUM 100UF 20% 50V SMD | 68% | View |
| AHA107M35F24T-F | Cornell Dubilier Knowles | CAP ALUM 100UF 20% 35V SMD | 67% | View |
| UCD1J101MNS1GS | Nichicon | CAP ALUM 63V POLAR | 66% | View |
Submit your RFQ for EEV-FC1A101P and get a quote within 24 hours.
