Panasonic Electronic Components

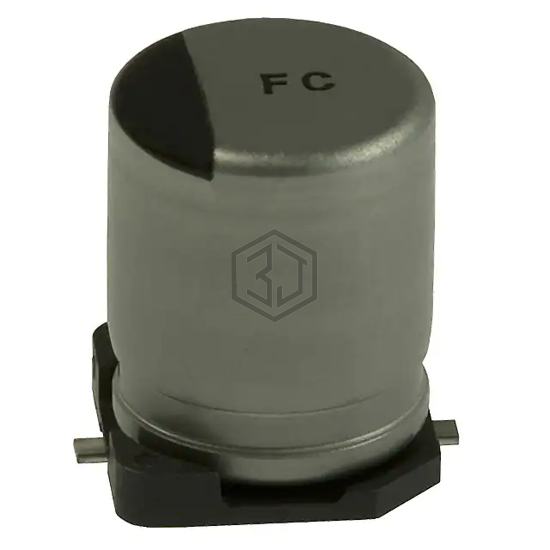

CAP ALUM 330UF 20% 6.3V SMD
EEV-FC0J331P is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 330UF 20% 6.3V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can - SMD.
In Stock: 4,744
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 337.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 450 mA @ 100 kHz |
| Impedance | 300 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.402" (10.20mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
EEV-FC0J331P is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 6.3JZV330M6.3X8 | Rubycon | CAP ALUM 330UF 20% 6.3V SMD | 81% | View |
| EEE-FK1A331V | Panasonic Electronic Components | CAP ALUM 330UF 20% 10V SMD | 72% | View |
| 16TRV330M8X10.5 | Rubycon | CAP ALUM 330UF 20% 16V SMD | 66% | View |
| EMHL160ARA331MHA0G | United Chemi-Con | CAP ALUM 330UF 20% 16V SMD | 64% | View |
| UWZ1A331MCL1GS | Nichicon | CAP ALUM 330UF 20% 10V SMD | 63% | View |
| CEE1V331MCB10A5 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 54% | View |
Submit your RFQ for EEV-FC0J331P and get a quote within 24 hours.
