Panasonic Electronic Components

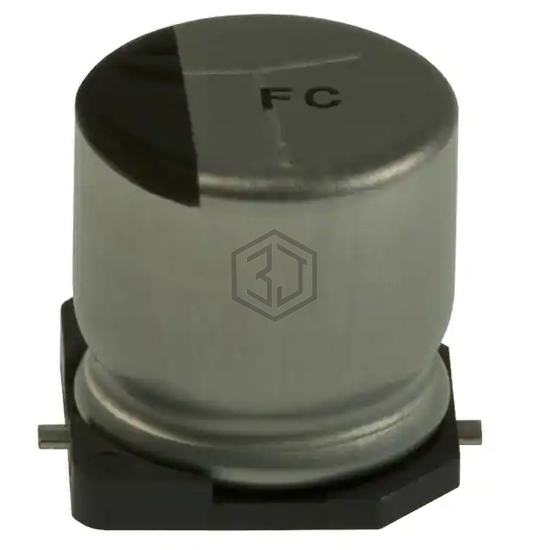

CAP ALUM 1500UF 20% 6.3V SMD
EEV-FC0J152P is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 1500UF 20% 6.3V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can - SMD.
In Stock: 2,457
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1500 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 502.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 670 mA @ 100 kHz |
| Impedance | 150 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.402" (10.20mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
EEV-FC0J152P is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 158SMH6R3M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 1500UF 20% 6.3V SMD | 98% | View |
| EDH158M6R3S9PAA | KEMET | CAP ALUM 1500UF 20% 6.3V SMD | 94% | View |
| EEE-FT0J152GP | Panasonic Electronic Components | CAP ALUM 1500UF 20% 6.3V SMD | 90% | View |
| EEE-FK0J152V | Panasonic Electronic Components | CAP ALUM 1500UF 20% 6.3V SMD | 89% | View |
| UWZ0J152MCL1GS | Nichicon | CAP ALUM 1500UF 20% 6.3V SMD | 80% | View |
| EEE-HD1C152AQ | Panasonic Electronic Components | CAP ALUM 1500UF 20% 16V SMD | 70% | View |
Submit your RFQ for EEV-FC0J152P and get a quote within 24 hours.
