Panasonic Electronic Components
CAP ALUM 4.7UF 20% 450V SMD

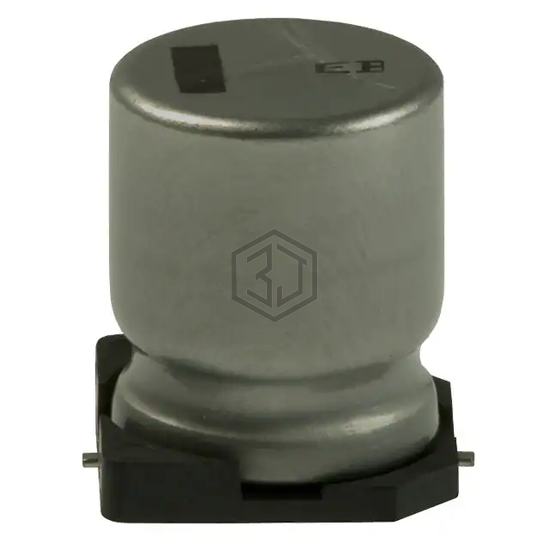

EEV-EB2W4R7SQ is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 4.7UF 20% 450V SMD. Key specifications: mounting type Surface Mount, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can - SMD.
In Stock: 4
| Attribute | Value |
|---|---|
| Product Status | Last Time Buy |
| Capacitance | 4.7 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 24.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 49 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.669" (17.00mm) |
| Surface Mount Land Size | 0.531" L x 0.531" W (13.50mm x 13.50mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
Submit your RFQ for EEV-EB2W4R7SQ and get a quote within 24 hours.
