Panasonic Electronic Components

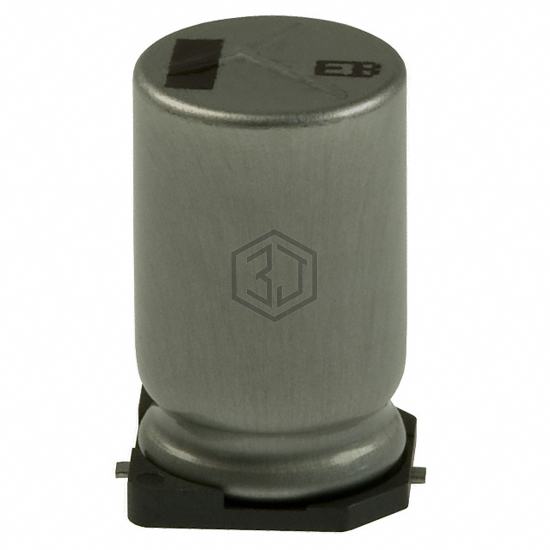

CAP ALUM 4.7UF 20% 400V SMD
EEV-EB2G4R7Q is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 4.7UF 20% 400V SMD. Key specifications: mounting type Surface Mount, operating temperature -25°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can - SMD.
In Stock: 5
| Attribute | Value |
|---|---|
| Product Status | Last Time Buy |
| Capacitance | 4.7 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 4000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 25 mA @ 120 Hz |
| Ripple Current @ High Frequency | 50 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.669" (17.00mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
Submit your RFQ for EEV-EB2G4R7Q and get a quote within 24 hours.
