Panasonic Electronic Components

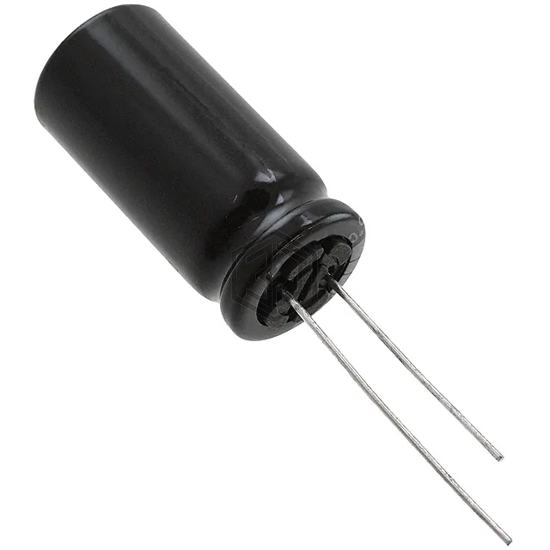

CAP ALUM 1800UF 20% 25V RADIAL
EEU-TP1E182 is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 1800UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 135°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 9,433
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 4000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 135°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 1.744 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.75 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-TP1E182B | Panasonic Electronic Components | CAP ALUM 1800UF 20% 25V RADIAL | 100% | View |
| EGQB250ELL162MK25H | United Chemi-Con | CAP ALUM 1600UF 20% 25V RADIAL | 83% | View |
| EGQB250ELL182ML20H | United Chemi-Con | CAP ALUM 1800UF 20% 25V RADIAL | 78% | View |
| EEU-TP1V182S | Panasonic Electronic Components | CAP ALUM 1800UF 20% 35V RADIAL | 74% | View |
| EEU-TP1V162 | Panasonic Electronic Components | CAP ALUM 1600UF 20% 35V RADIAL | 73% | View |
| EEU-TP1V162B | Panasonic Electronic Components | CAP ALUM 1600UF 20% 35V RADIAL | 73% | View |
