Panasonic Electronic Components

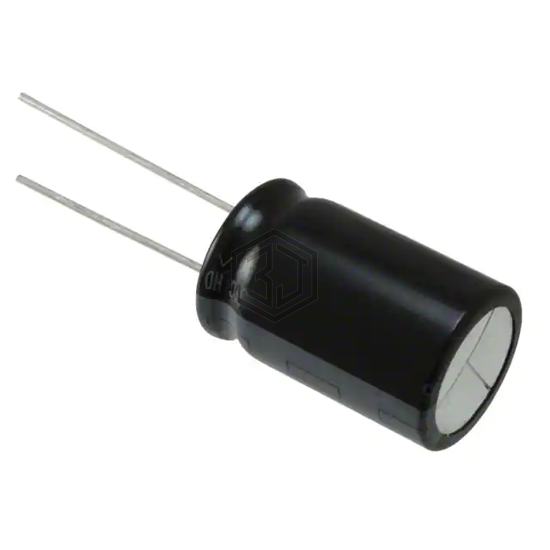

CAP ALUM 4700UF 20% 35V RADIAL
EEU-HD1V472 is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 4700UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 8,801
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 4700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.91 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.196 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.319" (33.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 35PX4700MEFC18X31.5 | Rubycon | CAP ALUM 4700UF 20% 35V RADIAL | 100% | View |
| ELXZ6R3EC5472MK30S | United Chemi-Con | CAP ALUM 4700UF 20% 6.3V RADIAL | 77% | View |
| MAL213654472E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4700UF 20% 10V RADIAL | 70% | View |
| EEU-FC1C472S | Panasonic Electronic Components | CAP ALUM 4700UF 20% 16V RADIAL | 69% | View |
| MAL213695475E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4700UF 20% 16V RADIAL | 69% | View |
| URZ1C472MHD | Nichicon | CAP ALUM 4700UF 20% 16V RADIAL | 59% | View |
Submit your RFQ for EEU-HD1V472 and get a quote within 24 hours.
