Panasonic Electronic Components
CAP ALUM 1000UF 20% 25V RADIAL

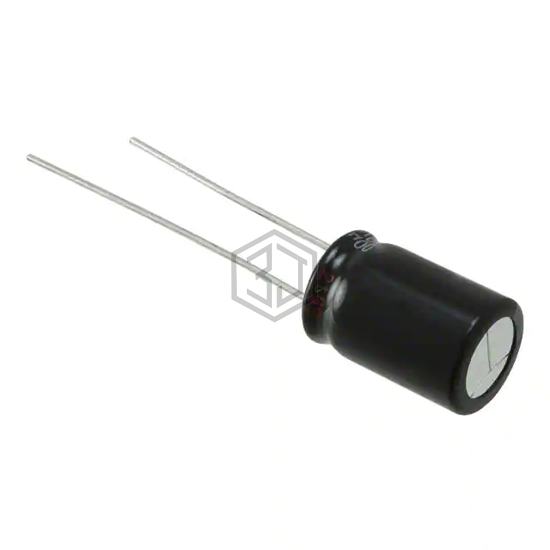

EEU-HD1E102B is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 1000UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 7,331
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 680 mA @ 120 Hz |
| Ripple Current @ High Frequency | 782 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.689" (17.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| URZ1E102MHD1TO | Nichicon | CAP ALUM 1000UF 20% 25V RADIAL | 93% | View |
| ECA-1VHG102B | Panasonic Electronic Components | CAP ALUM 1000UF 20% 35V RADIAL | 81% | View |
| UBX1C102MHL | Nichicon | CAP ALUM 1000UF 20% 16V RADIAL | 80% | View |
| MAL214060102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 35V RADIAL | 74% | View |
| UBW1A102MPD1TD | Nichicon | CAP ALUM 1000UF 20% 10V RADIAL | 69% | View |
| EEU-FK1C102 | Panasonic Electronic Components | CAP ALUM 1000UF 20% 16V RAD TH | 68% | View |
Submit your RFQ for EEU-HD1E102B and get a quote within 24 hours.
