Panasonic Electronic Components
CAP ALUM 6800UF 20% 16V RADIAL

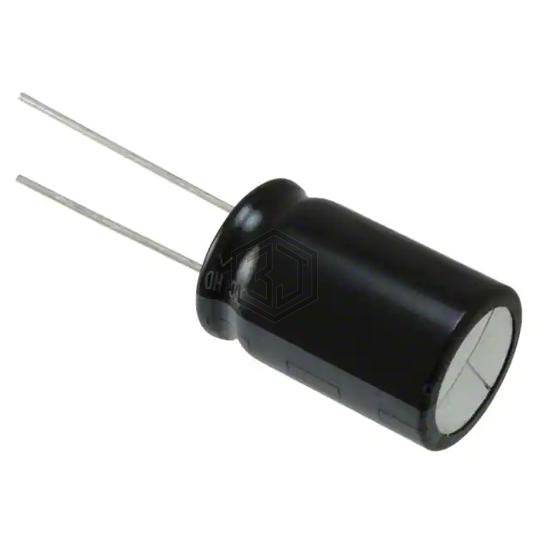

EEU-HD1C682B is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 6800UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 6,480
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 6800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.78 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.047 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-FK1C682S | Panasonic Electronic Components | CAP ALUM 6800UF 20% 16V RAD TH | 86% | View |
| MAL224635682E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 6800UF 20% 16V RADIAL | 85% | View |
| EEU-FC1C682 | Panasonic Electronic Components | CAP ALUM 6800UF 20% 16V RADIAL | 77% | View |
| EKMQ350ELL682MM40S | United Chemi-Con | CAP ALUM 6800UF 20% 35V RADIAL | 75% | View |
| MAL215054682E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 6800UF 20% 10V RADIAL | 74% | View |
| ELXZ100ELL682MM25S | United Chemi-Con | CAP ALUM 6800UF 20% 10V RADIAL | 72% | View |
Submit your RFQ for EEU-HD1C682B and get a quote within 24 hours.
