Panasonic Electronic Components

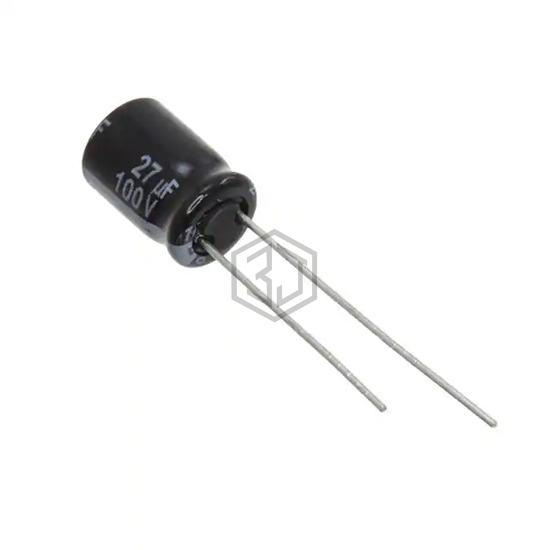

CAP ALUM 27UF 20% 100V RADIAL
EEU-FS2A270 is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 27UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 9,233
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 27 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 6000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 269.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 490 mA @ 100 kHz |
| Impedance | 160 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EPAG401ELL270MJ30S | United Chemi-Con | CAP ALUM 27UF 20% 400V RADIAL | 77% | View |
| UCY2V270MPD9TD | Nichicon | CAP ALUM 27UF 20% 350V RADIAL | 77% | View |
| 400QXW27MEFR8X35 | Rubycon | CAP ALUM 27UF 20% 400V RADIAL | 71% | View |
| 30D276F160DH2A | Vishay Sprague | CAP ALUM 27UF 160V AXIAL | 70% | View |
| 450LXW27MEFR12.5X20 | Rubycon | CAP ALUM 27UF 20% 450V RADIAL | 68% | View |
| EKXJ401ELL270MK20S | United Chemi-Con | CAP ALUM 27UF 20% 400V RADIAL | 66% | View |
Submit your RFQ for EEU-FS2A270 and get a quote within 24 hours.
