Panasonic Electronic Components

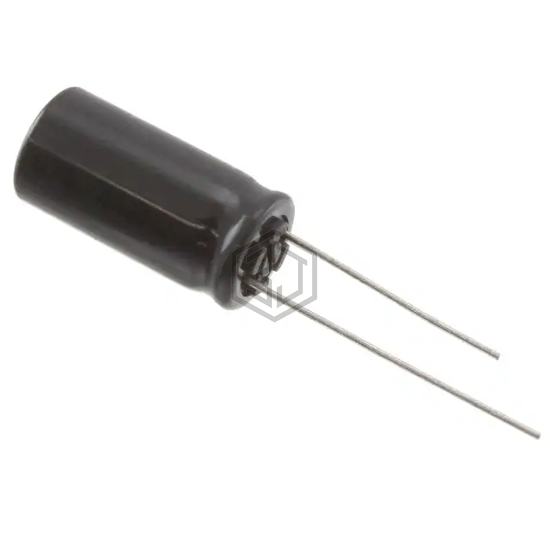

CAP ALUM 820UF 20% 35V RADIAL
EEU-FS1V821B is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 820UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 2,270
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 820 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.635 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.18 A @ 100 kHz |
| Impedance | 20 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-FC1J821SB | Panasonic Electronic Components | CAP ALUM 820UF 20% 63V RADIAL | 68% | View |
| MAL214651821E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 820UF 20% 50V RADIAL | 67% | View |
| LGU2D821MELA | Nichicon | CAP ALUM 820UF 20% 200V SNAP | 66% | View |
| 160MXC820MEFC25X35 | Rubycon | CAP ALUM 820UF 20% 160V SNAP | 66% | View |
| 100YXH820MEFCGC18X40 | Rubycon | CAP ALUM 820UF 20% 100V RADIAL | 64% | View |
| 827LMH400M2EH | Cornell Dubilier / Illinois Capacitor | CAP ALUM 820UF 20% 400V SNAP | 60% | View |
Submit your RFQ for EEU-FS1V821B and get a quote within 24 hours.
