Panasonic Electronic Components

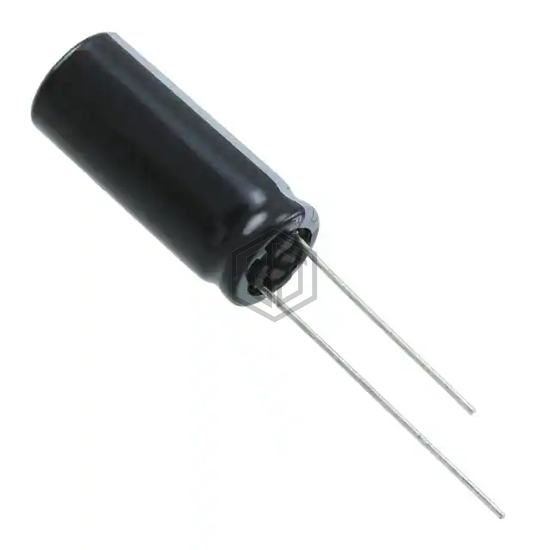

CAP ALUM 1000UF 20% 35V RADIAL
EEU-FS1V102L is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 1000UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 1,361
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.8525 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.47 A @ 100 kHz |
| Impedance | 18 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL215050102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 35V RADIAL | 82% | View |
| 50YXJ1000M16X25 | Rubycon | CAP ALUM 1000UF 20% 50V RADIAL | 79% | View |
| EGXF500ELL102MU25S | United Chemi-Con | CAP ALUM 1000UF 20% 50V RAD TH | 78% | View |
| 381LX102M100J022 | Cornell Dubilier Electronics (CDE) | CAP ALUM 1000UF 20% 100V SNAP | 76% | View |
| KY25VB102M12X20LL | United Chemi-Con | CAP ALUM 1000UF 20% 25V RADIAL | 67% | View |
| 381LQ102M200K032 | Cornell Dubilier Electronics (CDE) | CAP ALUM 1000UF 20% 200V SNAP | 67% | View |
Submit your RFQ for EEU-FS1V102L and get a quote within 24 hours.
